FLAGSHIP MODEL
Magnetic Drilling Machines

TV.60T

Drills up to Ø 60 mm · M3–M24 tapping

The TV.60T combines Ø 60 mm drilling capacity in plate up to 100 mm thick with full M3–M24 tapping in a single machine. A two-speed gearbox and forward/reverse control let one operator drill, tap and countersink without changing tools, making it the machine of choice for shipyards, bridge fabricators and heavy structural shops.

Get a Quote → View Specs ↓
TV.60T
Ø 12–60 mm (0.47–2.36″)
Annular Cutters
Ø 6–32 mm
Twist Drills
M3–M24
Threading
21 kg (46 lb)
Weight
TECHNICAL SPECIFICATIONS

Technical Data

Annular Cutters
Ø 12–60 mm (0.47–2.36″)
Twist Drills
Ø 6–32 mm
Threading
M3–M24
Countersinking
Ø 10–60 mm
Magnetic Force
13,000 N (≈2,920 lbf)
Motor Power
1600 W
Total Power
1650 W
Speed (RPM)
  • 80-320(Gear 1)
  • 200-600(Gear 2)
Spindle
MT3
Power Supply
  • 220–240 V AC
  • 50/60 Hz (110 V version on request)
Length
300 mm
Width
140 mm
Height
440–620 mm
Stroke
175 mm
Weight
21 kg (46 lb)
SCAN TO WATCH

SEE THE TV.60T IN ACTION

Watch a quick demo of setup, drilling performance, and key features on the TV.60T magnetic drill.

Watch Video
KEY FEATURES

What Makes It Stand Out

Drilling & Tapping
  • Annular cutters up to Ø 60 mm
  • Machine tapping M3–M24 forward / reverse
  • Twist drilling to Ø 32 mm
  • Plate thickness up to 100 mm
Gearbox
  • Two-speed gearbox — 320 / 600 rpm
  • Matches surface speed to cutter diameter
  • MT3 spindle
Cooling
  • Integrated coolant feed with spiral hose
  • 13,000 N magnetic adhesion
  • 175 mm stroke
SCOPE OF SUPPLY

In the Box

  • Machine
  • Carrying case
  • Retaining chain
  • Coolant bottle & hose
  • Allen / hex keys
  • MT3 arbor & 16 mm drill chuck
  • Pilot pins
  • Carbon brush set
  • Operating manual & warranty card
WORKS WITH

Compatible

  • TCT annular cutters Ø 12–60 mm
  • HSS annular cutters Ø 12–60 mm
  • Twist drills up to Ø 32 mm
  • Machine tap M8 to M24 + Tapping Arbor
  • Pilot pins
  • Cutting lubricant
GET IN TOUCH

Enquire About
TV.60T

Fill in your details and our team will get back to you within 24 hours (Mon–Sat, IST / GMT+5:30) with pricing and availability.

Response within 24 hours
Dedicated support team
India & worldwide delivery
WhatsApp Us
ALSO IN MAGNETIC DRILLING MACHINES

Related Products

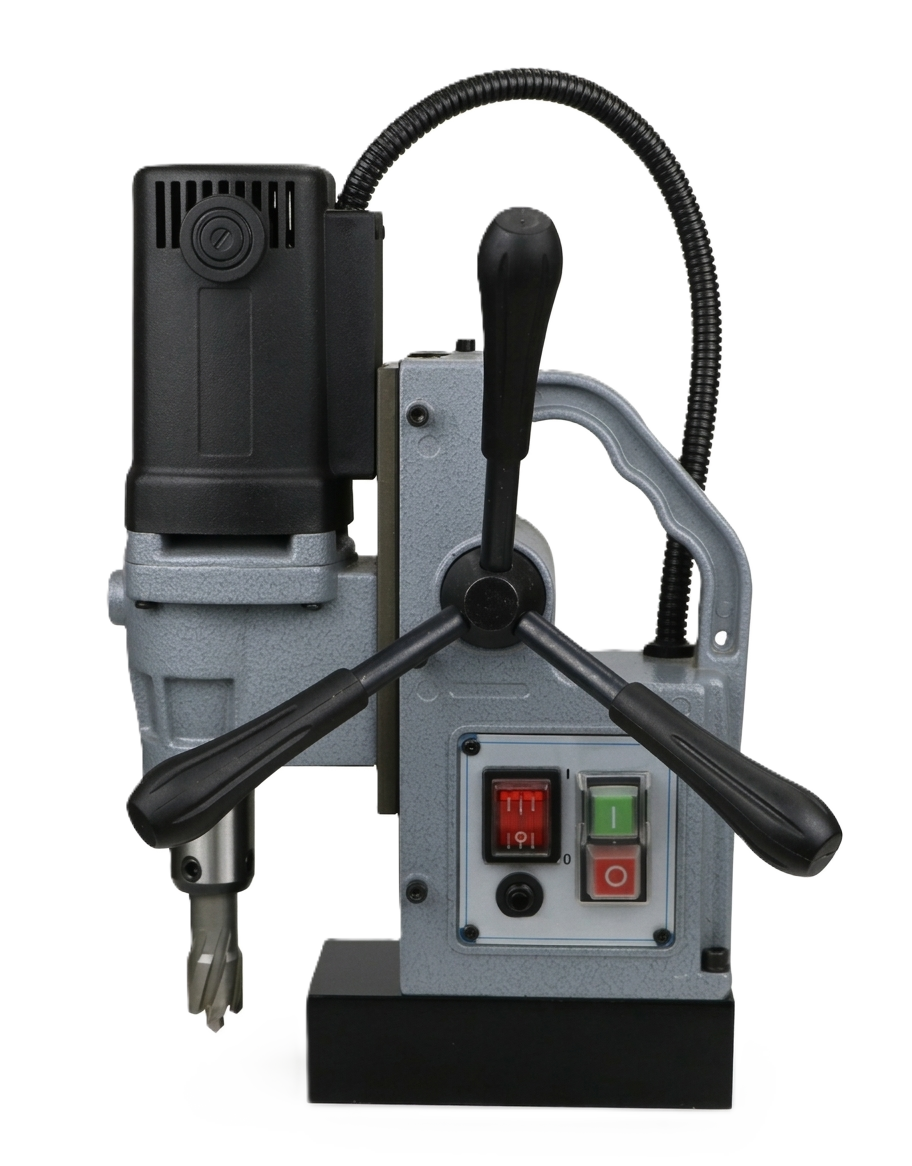

TV.40
TV.40
Drills up to Ø 40 mm · 1050 W motor
Ø 12–40 mm (0.47–1.57″) Ø 6–13 mm (Weldon) 1050 W
View Details →
TV.120
TV.120
Drills up to Ø 120 mm · 4-speed gearbox
Ø 12–120 mm (0.47–4.72″) 22,000 N (≈4,950 lbf) 2000 W
View Details →

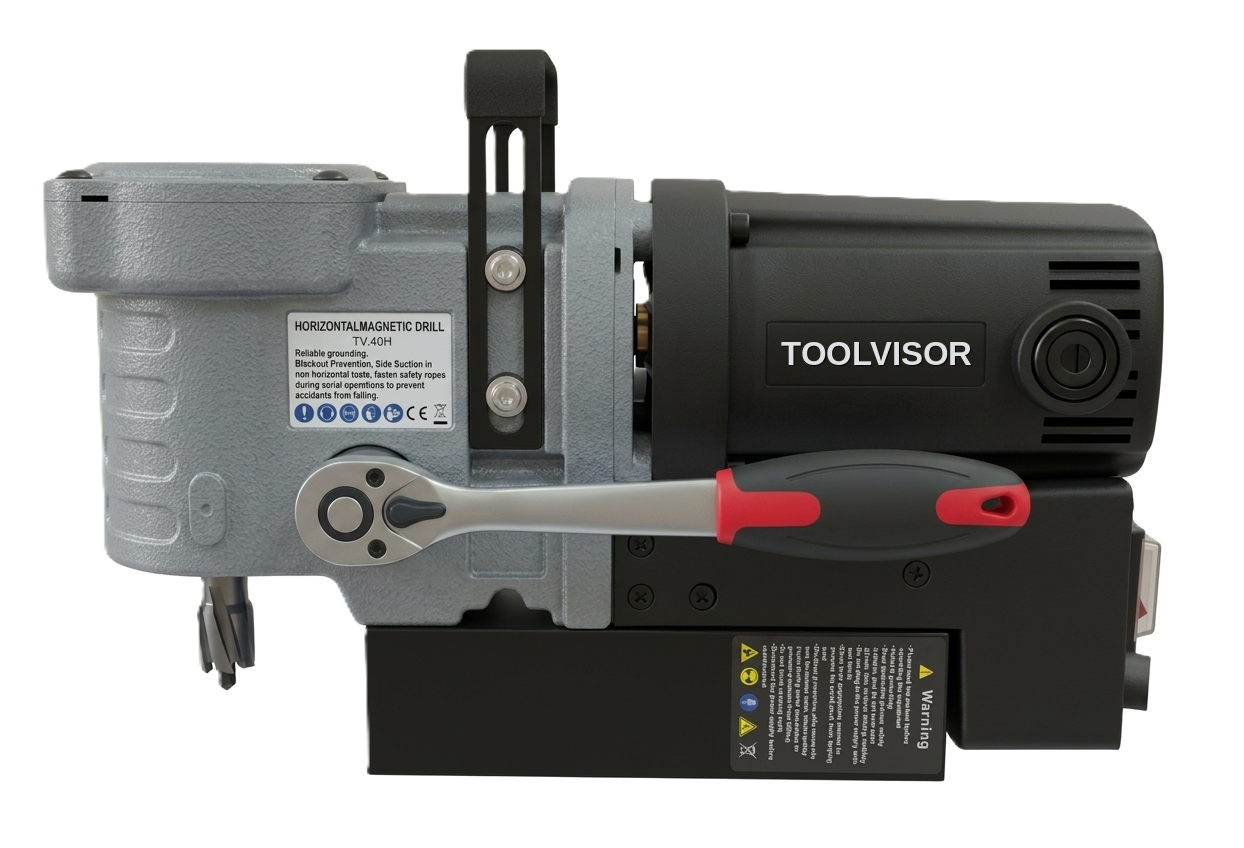

TV.40H
