MAGNETIC DRILLING MACHINES
Portable magnetic drilling machines for structural steel, fabrication and on-site work. From the 9.5 kg TV.40 to the 120 mm capacity TV.120, every machine ships with an integrated coolant feed, overload protection and a Weldon or Morse-taper spindle.

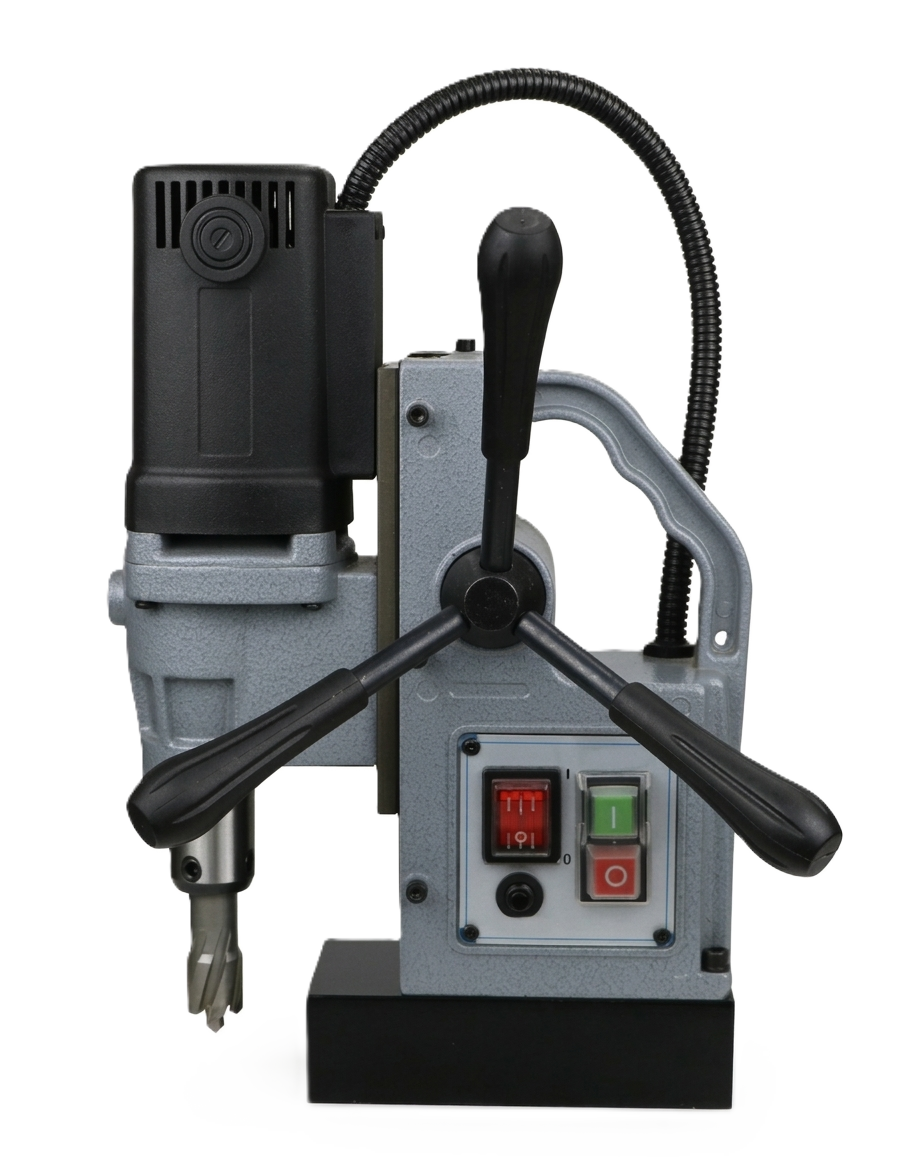

The TV.40 is a compact 1050 W magnetic drilling machine built for structural steel, site fabrication and maintenance work. At 9.5 kg it is light enough to carry up scaffolding yet holds 10,000 N of magnetic adhesion, and the integrated coolant feed keeps annular cutters running cool through plate up to 55 mm thick.
The TV.60T combines Ø 60 mm drilling capacity in plate up to 100 mm thick with full M3–M24 tapping in a single machine. A two-speed gearbox and forward/reverse control let one operator drill, tap and countersink without changing tools, making it the machine of choice for shipyards, bridge fabricators and heavy structural shops.
The TV.120 is ToolVisor's heavy-duty magnetic drill, taking annular cutters to Ø 120 mm in plate up to 200 mm thick on an MT-4 Morse-taper spindle. A four-speed gearbox spanning 35–500 rpm matches surface speed to cutter diameter, and a 22,000 N magnetic base holds the machine solid through the deepest cuts.

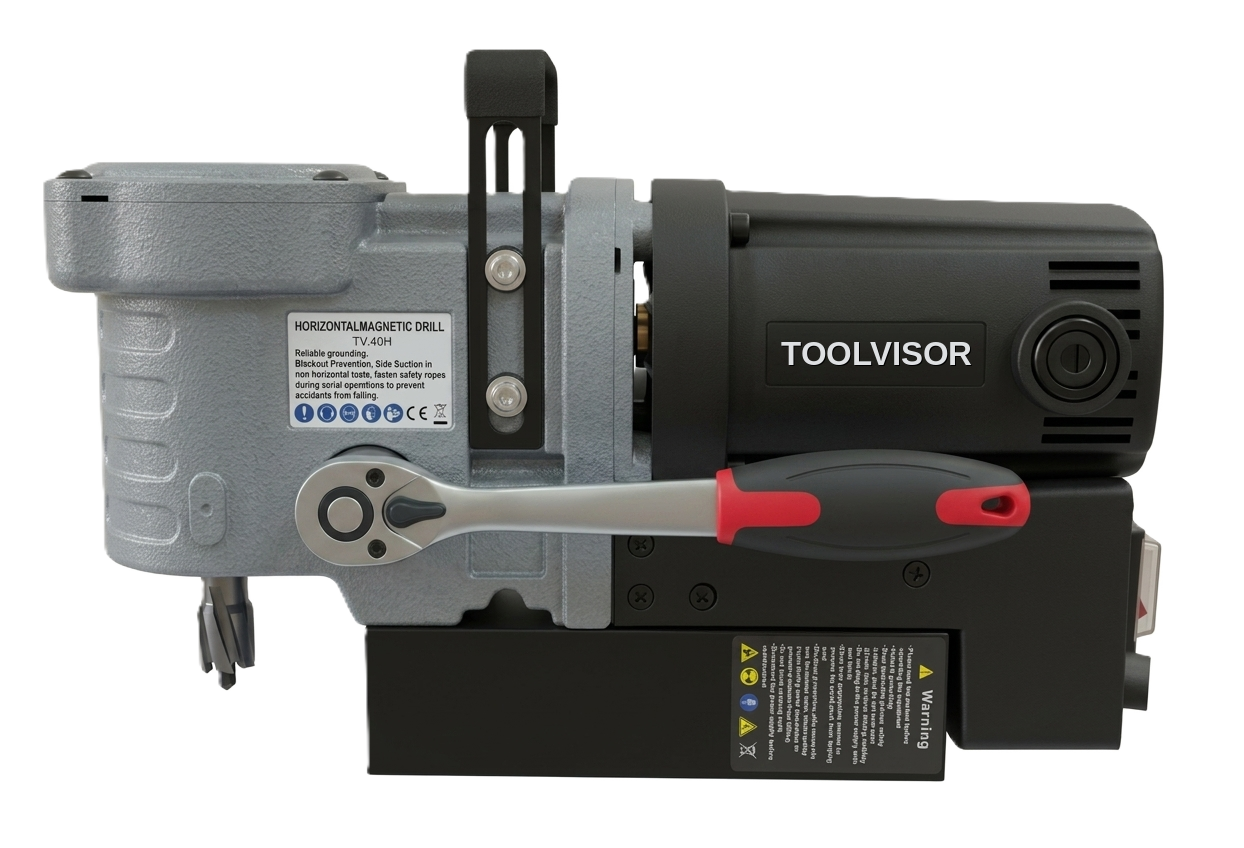

The TV.40H is a horizontal magnetic drilling machine with a 175 mm overall height, designed to reach into box sections, beam webs and other confined spaces where a conventional upright drill will not fit. A quick-release arbor and dual-side feed handle let it be set up from either side of the workpiece.
TV.40 vs TV.60T vs TV.120 vs TV.40H
| Specification | TV.40 | TV.60T | TV.120 | TV.40H |
|---|---|---|---|---|
| Annular Cutters | Ø 12–40 mm (0.47–1.57″) | Ø 12–60 mm (0.47–2.36″) | Ø 12–120 mm (0.47–4.72″) | Ø 12–40 mm (0.47–1.57″) |
| Twist Drills | Ø 6–13 mm (Weldon) | Ø 6–32 mm | Ø 6–49 mm | Ø 6–16 mm (Weldon) |
| Threading | — | M3–M24 | M8–M42 | — |
| Countersinking | Ø 10–40 mm | Ø 10–60 mm | Ø 10–50 mm | Ø 10–40 mm |
| Magnetic Force | 10,000 N (≈2,250 lbf) | 13,000 N (≈2,920 lbf) | 22,000 N (≈4,950 lbf) | 12,000 N (≈2,700 lbf) |
| Motor Power | 1050 W | 1600 W | 2000 W | 1200 W |
| Total Power | 1100 W | 1650 W | 2200 W | 1250 W |
| Speed (RPM) |
|
|
|
|
| Spindle | Weldon 19.05 mm / ¾″ | MT3 | MT-4 | Weldon 19.05 mm |
| Power Supply |
|
|
|
|
| Length | 250 mm | 300 mm | 450 mm | 310 mm |
| Width | 110 mm | 140 mm | 160 mm | 100 mm |
| Height | 290–430 mm | 440–620 mm | 520–780 mm | 175 mm |
| Stroke | 140 mm | 175 mm | 260 mm | 50 mm |
| Weight | 9.5 kg (21 lb) | 21 kg (46 lb) | 34 kg (75 lb) | 10.5 kg (23 lb) |
